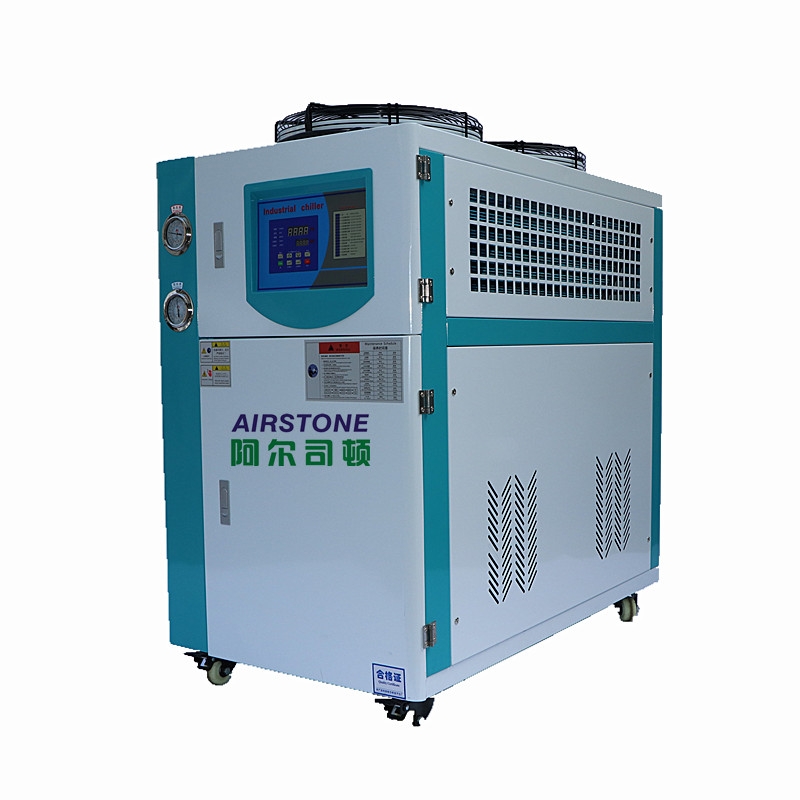

Water Chiller

  • Working Pressure :

    [ bar ]
  • [ psig ]
  • Free Air Delivery :

    [ cfm ]
  • [ m3/min ]
  • Working Power :

    3.75-45[ kw ]
  • 5-60[ hp ]
Chat with us, we are online!

    Air cooled water chillers absorb heat from process water, and the heat is then transferred to the air around the chiller unit;

    Air cooled water chillers are more suitable for common applications on smaller or medium installations where space constraints may exist;

    Water chiller machines are the most practical choice in places where water is scarce(such as desert areas);

    Since the wet surface transfers heat better than the dry surface, it consumes about 10% more electricity than a water cooler chiller unit.

    Model Number

    Unit

    AC-5HP

    Refrigeration Capacity

    KW

    13.95



    Kcal/hour

    11,990

    Voltage

    V/Hz/PH

    380/50/3

    Compressor Power

    KW

    3.75

    Fan Assembly

    Type

    Axical flow fan



    Power

    0.38



    Blowing Rate(m3/hour)

    7,000

    Water Pump

    Lift(m)

    18



    Flow Rate(L/min)

    90

    Condenser

    Flow Rate(m3/hour)

    5,000

    Evaporator

    Flow Rate(m3/hour)

    2.4
