Fix Speed Screw Air Compressor

Working Pressure :
7-12[ bar ]
100-174[ psig ]
Free Air Delivery :
28-1528[ cfm ]
0.8-42.8[ m³/min ]
Working Power :
7.5-250[ kw ]
10-350[ hp ]

Model Number	Pressure		Capacity		Motor Power	Driven method	Ambient Temperature	Connection Size	Dimensions(mm) Air Cooled			Lubricate	Weight	Noise
	bar	psi	m³/min	cfm	kW/HP		℃		Length	Width	Height	Litres	kg	dB(A)
AS-10HB	7	100	1.2	42.4	7.5/10	Direct driven / Belt driven	-5℃±50℃	RP1/2‘‘	890	650	830	10	180	62
	8	116	1.1	38.8
	10	145	0.9	31.8
	12	174	0.8	28.3
AS-15HB	7	100	1.7	60.0	11/15			G3/4‘‘	1000	700	1050	15	290	62
	8	116	1.6	56.5
	10	145	1.4	49.4
	12	174	1.1	38.8
AS-20HB	7	100	1.7	60.0	15/20			G3/4‘‘	1000	700	1050	15	290	65
	8	116	1.6	56.5
	10	145	1.4	49.4
	12	174	1.1	38.8
AS-25HB	7	100	3.1	109.5	18.5/25			G1‘‘	1150	850	1150	18	400	65
	8	116	2.85	100.6
	10	145	2.3	81.2
	12	174	2.2	77.7
AS-30HB	7	100	3.6	127.1	22/30			G1‘‘	1150	850	1150	18	410	65
	8	116	3.4	120.1
	10	145	3.25	114.8
	12	174	2.7	95.3
AS-40HB	7	100	5.2	183.6	30/40	Direct driven		G1‘‘	1300	950	1250	25	480	65
	8	116	5	176.6
	10	145	4.3	151.9
	12	174	3.3	116.5
AS-50HB	7	100	6.8	240.1	37/50			G1-1/2‘‘	1450	930	1300	25	610	65
	8	116	6.2	218.9
	10	145	5.6	197.8
	12	174	4.0	141.3
AS-60HB	7	100	8	282.5	45/60			G1-1/2‘‘	1450	930	1300	30	650	65
	8	116	7.7	271.9
	10	145	7	247.2
	12	174	5.7	201.3
AS-75HB	7	100	10	353.1	55/75			G2‘‘	1650	1200	1540	30	1050	72
	8	116	9.2	324.9
	10	145	8.5	300.2
	12	174	7.6	268.4
AS-100HB	7	100	13.5	476.7	75/100			G2‘‘	1800	1200	1540	35	1150	72
	8	116	12	423.8
	10	145	11.2	395.5
	12	174	10.2	360.2
AS-120HB	7	100	16.1	568.6	90/120			G2‘‘	1900	1250	1570	35	1240	75
	8	116	15	529.7
	10	145	13.8	487.3
	12	174	12.3	434.4
AS-150HB	7	100	21	741.6	110/150			DN65	2300	1470	1840	60	1800	75
	8	116	18.9	667.4
	10	145	18.7	660.4
	12	174	14.5	512.1
AS-175HB	7	100	25.2	889.9	132/175			DN65	2300	1470	1840	60	1980	75
	8	116	24	847.5
	10	145	21.5	759.3
	12	174	18.5	653.3
AS-200HB	7	100	28.7	1013.5	160/200			DN85	2700	1700	2300	60	2750	78
	8	116	27.2	960.5
	10	145	24.6	868.7
	12	174	21.3	752.2
AS-250HB	7	100	32	1130.0	185/250			DN85	2700	1700	2300	80	3250	78
	8	116	30.5	1077.1
	10	145	27.5	971.1
	12	174	24.8	875.8
AS-300HB	7	100	36.7	1296.0	220/300			DN100	3200	2000	2500	80	3560	82
	8	116	34.7	1225.4
	10	145	30.2	1066.5
	12	174	27.8	981.7
AS-300HB	7	100	36.7	1296.0	220/300
AS-350HB	7	100	42.8	1511.4	250/350		DN100	3200	2000	2500	120	4200	82
	8	116	40.5	1430.2
	10	145	38.1	1345.5
	12	174	34.5	1218.3

Oil Injected Screw Air Compressor...

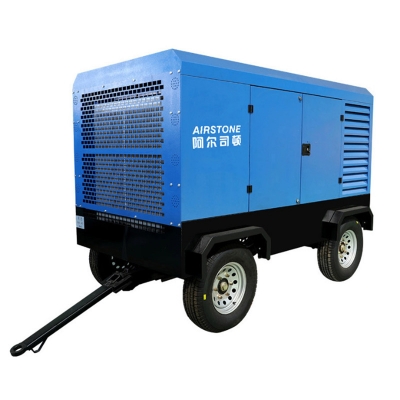

Portable compressor catalog with drilling...

Airstone oil free screw compressor...

Related products

Stainless Steel Air Receiver Tank...

Electric Engine Portable Air Compressor...

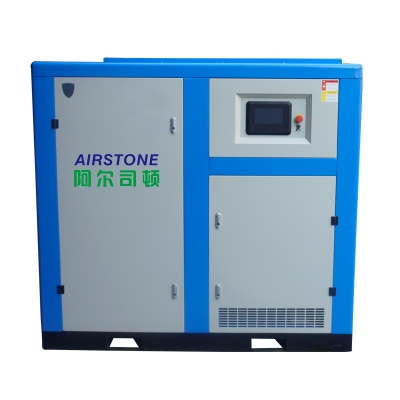

Airstone oil free water lubricant 8bar fix speed type screw...
