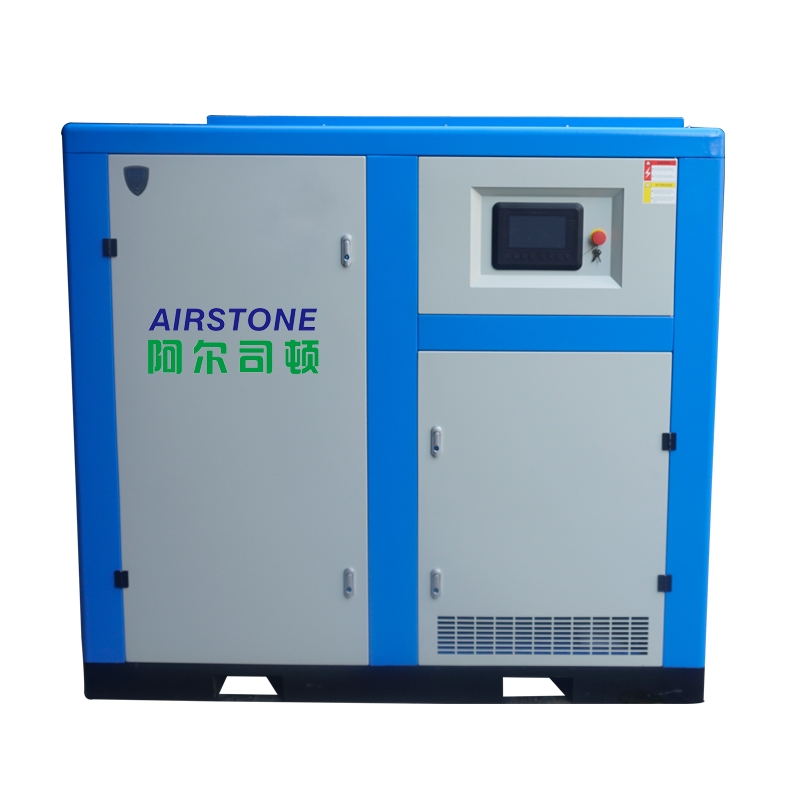

Airstone oil free water lubricant 8bar fix speed type screw compressor for high precision industry

  • Working Pressure :

    8[ bar ]
  • 116[ psig ]
  • Free Air Delivery :

    0.78-40.15[ cfm ]
  • 27.3-1405.25[ m3/min ]
  • Working Power :

    5.5-250[ kw ]
  • 7.5-300[ hp ]
Chat with us, we are online!
    1.With the fifth generatiohn of oil-free screw airend technology.The compressor airend and system adopt stainless steel alloy,thus the technological transcendence from the copper airend to the stainless steel airend is realized.

    2.Integrated design is adopted for the whole machine.There are no complex pipelines and lines,and the fault points are less and more stable.

    3.Less maintenance consumables (air filter,water filter),easy maintenance,no professional staff os required to operate it,and less maintenance costs.

    4.There is absolutely no oil in compressor system,without any oil pollution risk,it gives guarantee of no oil in generted compressor air.

    5.Volumetric efficiency is more higher based on is othermal compression.Mopre than 15% engergy is averagely saved compared with dry type two stage compression oil-free screw air compressors,more than 25% energy is averagely saved compared with the type one stage compression ,the running temperature is less than 50℃,and there is no risk of being burmed.

    6.Wider pressure ranges:2-40Bar.

    7.The full intelligent CNC precise machining technology keeps the airend working smoothly,which can ensure lower noise,smaller vibration,and longer service life.

    8.Avergely more than 10% air delivery is generated for the same power of water lubricating screw air compressors than the same power dry type oil-free screw air compressor

    9.More simple and convenient operation.PLC intelligent control is adopted.Automatic falu detection,falut warning,maintenance reminder,fault reminder,automatic protection function.It can realize 24hours unattened and remote control funtion,

    10.Compressed air is more clear through cleaned by lubricating water,it can be directly used for breathing.The dew point of saturated compressed air is lower by more than 25% than that of an ordinary dry type oil-free screw air compressor.

    11.The airend patent optimized design,larger rotor,lower rotary speed (within 3000r/min),without gearbox,direct connection drive,it has lower rotary speed and longer life compared with dry oil-free screw air compressor(10000-20000r/min)

    12.The function of automatic water exchange and automatic system cleaning can be realized,and the interior of the compressor is more clean and sanitary.

    13.Can make customization:frigid region,high region options intelligent heating system.

    Model No.

    maxinmum
    work pressure(Mpa)

    FAD
     m3/min

    Motor
     Power
    KW

    Noise
     dB

    inlet
    and outlet
    for coolant water

    Quantity oA
    cooling water
    (Water
    entering 32)

    Lubricating
    water
    L

    Dimension
    (LxWxH
    mm)

    Weight
    KG

    Air Outlet

    OF-06A

    0.8

    0.78

    5.5

    57

    3/4“

    1.5

    10

    800x800x1100

    430

    3/4"

    OF-08A

    0.8

    1.17

    7.5

    57

    3/4“

    2

    10

    800x800x1100

    470

    3/4"

    OF-11A

    0.8

    1.72

    11

    60

    1”

    2.5

    26

    1200x760x1300

    580

    3/4"

    OF-15A

    0.8

    2.43

    15

    60

    1“

    3.5

    26

    1200x760x1300

    620

    3/4"

    OF-18A

    0.8

    3.13

    18.5

    63

    1“

    4

    30

    1400x900x1450

    680

    1"

    OF-22A

    0.8

    3.62

    22

    63

    1“

    5

    30

    1400x900x1450

    730

    1"

    OF-30A

    0.8

    5.12

    30

    66

    1  1/2“

    7

    40

    1550x1150x1500(A)

    1100

    1 1/4"

    OF-37A

    0.8

    6.30

    37

    66

    1  1/2“

    9

    40

    1550x1150x1500(A)

    1150

    1 1/4"

    OF-45A

    0.8

    7.80

    45

    68

    1  1/2“

    10

    90

    1800x1300x1750(A)

    1390

    2"

    OF-55A

    0.8

    9.76

    55

    69

    1  1/2“

    12

    100

    1980x1300x1750(A)

    1470

    2"

    OF-75A

    0.8

    13.00

    75

    72

    1  1/2“

    18

    100

    1800x1300x1750(W)

    1630

    2"

    OF-90A

    0.8

    15.20

    90

    73

    1  1/2“

    20

    120

    2200x1550x1800

    2350

    2 1/2"

    OF-110A

    0.8

    19.97

    110

    77

    2”

    24

    120

    2200x1550x1800

    2460

    2 1/2"

    OF-132A

    0.8

    23.80

    132

    77

    2“

    30

    120

    2200x1550x1800

    2500

    2 1/2"

    OF-160A

    0.8

    28.11

    160

    79

    3“

    35

    160

    3000x1800x2100

    3700

    3"

    OF-185A

    0.8

    33.97

    185

    79

    3“

    38

    160

    3000x1800x2100

    3750

    3"

    OF-200A

    0.8

    36.75

    200

    80

    4“

    42

    200

    3100x1850x2100

    3900

    4"

    OF-220A

    0.8

    39.67

    220

    80

    4“

    47

    200

    3100x1850x2100

    4200

    4"

    OF-250A

    0.8

    40.15

    250

    80

    4“

    53

    200

    3100x1850x2100

    4600

    4"
