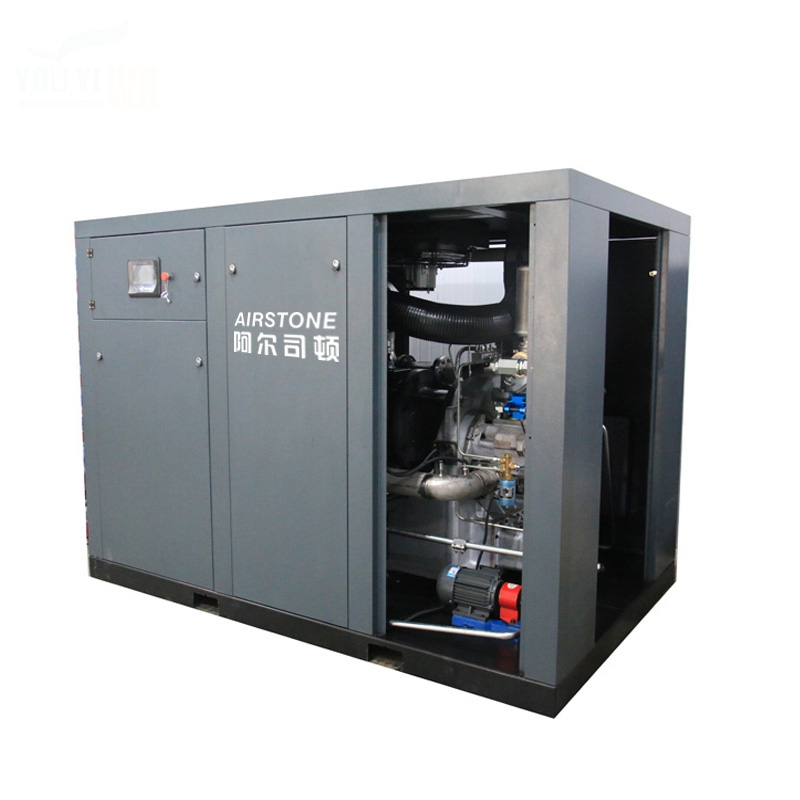

Airstone Fix Speed Variable Speed Dryer Oli free Compressor-【Airstone】- Airstone Screw Air Compressor system manufacturer supply compressor solution

Dry Oli free Compressor

Working Pressure :
7.5-10[ bar ]
107-145[ psig ]
Free Air Delivery :
375-414[ cfm ]
10.5-11.6[ m³/min ]
Working Power :
75-200[ kw ]
100-267[ hp ]

Chat with us, we are online!

1. High Efficiency Oil Free Compressor Block

Unique profile design ensures block efficiency

Rotor forged steel, high strength, high hardness

Cooling jacket is used for all series of heads

The seal is made of high quality alloy and can be reused

2.Reliable Function Of The Controller

The advanced control system supports simultaneous control of the compressor and post-processing

Reliable hardware and software design without maintenance

Supports multiple local and remote communication modes

Comprehensive unit operation status and historical records query

3.Load/Unload Valve

No external air supply demand

Inlet and vent valves are mechanically interlocked

Very low discharge power

4.High Efficiency Permanent Magnet Motor Hpm

IP55 standard HPM prevent dust and chemicals from entering

Continuous operation under harsh ambient temperature conditions

Direct energy savings up to 25% with HPM

Adjustable flow range from 30% to 100%

5.Efficient Cooler And Water Separator

Advanced corrosion resistant material, long life

Advanced welding technology ensures reliable sealing

The star fin design significantly increases the heat transfer area

Labyrinth water separator effectively separates condensed water

Model	Pressure	Capacity		Motor power		Noise Level	Weight	Size
Model	bar	m3/min	cfm	kw	hp	dB(A)	kg	mm
OFW 55-7.5	7.5	8.8	310	55	75	65	1800	214013761900
OFW 55-8.6	8.6	7.9	280	55	75	65	1800	214013761900
OFW 55-10	10	7.3	260	55	75	65	1800	214013761900
OFW 75-7.5	7.5	11.9	425	75	100	65	1890	214013761900
OFW 75-8.6	8.6	11.2	400	75	100	65	1890	214013761900
OFW 75-10	10	10.7	382	75	100	65	1890	214013761900
OFW 90-7.5	7.5	14.3	410	90	120	65	1925	214013761900
OFW 90-8.6	8.6	13.5	482	90	120	65	1925	214013761900
OFW 90-10	10	12.7	453	90	120	65	1925	214013761900
OFA 55-7.5	7.5	8.7	310	55	75	72	1900	214013762150
OFA 55-8.6	8.6	7.9	282	55	75	72	1900	214013762150
OFA 55-10	10	7.3	260	55	75	72	1900	214013762150
OFA 75-7.5	7.5	11.9	425	75	100	72	2000	214013762150
OFA 75-8.6	8.6	11.2	400	75	100	72	2000	214013762150
OFA 75-10	10	10.7	382	75	100	72	2000	214013762150
OFA 90-7.5	7.5	14.3	510	90	120	72	2050	214013762150
OFA 90-8.6	8.6	13.5	482	90	120	72	2050	214013762150
OFA 90-10	10	12.7	453	90	120	72	2050	214013762150

OFW110-7.5	7.5	19.1	682	100	150	69	2635	254016622008
OFW110-8.6	8.6	17.8	636	100	150	69	2635	254016622008
OFW110-10	10	16	571	100	150	69	2635	254016622008
OFW132-7.5	7.5	21.9	782	132	150	69	2760	254016622008
OFW132-8.6	8.6	19.6	700	132	150	69	2760	254016622008
OFW132-10	10	18.9	675	132	150	69	2760	254016622008
OFW145-7.5	7.5	23.5	839	145	200	70	2900	254016622008
OFW145-8.6	8.6	21.7	775	145	200	70	2900	254016622008
OFW145-10	10	20.1	718	145	200	70	2900	254016622008
OFW145-13	13	19.2	650	145	200	73	2900	254016622008
OFW160-7.5	7.5	28.3	1011	160	200	69	3850	314016622008
OFW160-8.6	8.6	26.1	932	160	200	69	3850	314016622008
OFW160-10	10	24.1	864	160	200	69	3850	314016622008
OFW200-7.5	7.5	36.1	1289	200	250	67	4000	314016622008
OFW200-8.6	8.6	33.1	1182	200	250	67	4000	314016622008
OFW200-10	10	30.4	1086	200	250	67	4000	314016622008
OFW250-7.5	7.5	43.1	1539	250	300	67	4100	314016622008
OFW250-8.6	8.6	41.0	1464	250	300	67	4100	314016622008
OFW250-10	10	37.4	1336	250	300	67	4100	314016622008
OFW250-13	13	30.9	1104	250	300	67	4100	314016622008
OFW275-7.5	7.5	46.4	1657	275	350	67	4300	314016622008
OFW275-8.6	8.6	43.0	1536	275	350	67	4300	314016622008
OFW275-10	10	41.0	1464	275	350	67	4300	314016622008
OFW275-13	13	33.7	1204	275	350	70	4300	314016622008
OFA 110-7.5	7.5	18.4	657	110	150	71	3560	404016622008
OFA 110-8.6	8.6	17.2	614	110	150	71	3560	404016622008
OFA 110-10	10	16	571	110	150	71	3560	404016622008
OFA 132-7.5	7.5	21.8	779	132	150	72	3700	404016622008
OFA 132-8.6	8.6	19.5	696	132	150	72	3700	404016622008
OFA 132-10	10	18.8	671	132	150	72	3700	404016622008
OFA 145-7.5	7.5	23.2	829	145	200	72	3850	404016622008
OFA 145-8.6	8.6	21.5	768	145	200	72	3850	404016622008
OFA 145-10	10	19.9	711	145	200	72	3850	404016622008
OFA 160-7.5	7.5	27.9	996	160	200	77	5250	504016622008
OFA 160-8.6	8.6	25.7	918	160	200	77	5250	504016622008
OFA 160-10	10	23.8	850	160	200	78	5250	504016622008
OFA 200-7.5	7.5	34.1	1218	200	250	78	5250	504016622008
OFA 200-8.6	8.6	31.3	1118	200	250	78	5250	504016622008
OFA 200-10	10	30	1071	200	250	78	5250	504016622008
OFA 250-7.5	7.5	42.4	1514	250	300	77	5300	504016622008
OFA 250-8.6	8.6	40.1	1432	250	300	78	5300	504016622008
OFA 250-10	10	36.8	1314	250	300	78	5300	504016622008
OFA 275-7.5	7.5	44.3	1582	275	350	77	5400	504016622008
OFA 275-8.6	8.6	42.4	1514	275	350	78	5400	504016622008
OFA 275-10	10	40.4	1443	275	350	78	5400	504016622008
